Cogeneration units ecoPOWER

Vaillant ecoPOWER

Micro-cogeneration unit, of the German company called Vaillant, with the internal combustion piston engine powered by natural gas, is an ideal solution for not only family houses but also for large apartments of flats or businesses. A combined production of electricity and heat (CHP – Combined Heat and Power) brings significant savings in energy and heating costs. A combined production (i.e. KVET) is currently supported in a form of green bonuses for an electricity production in the Czech Republic.

Take advantage of the government subsidy and produce your own electricity under favourable conditions!

How does the cogeneration unit work?

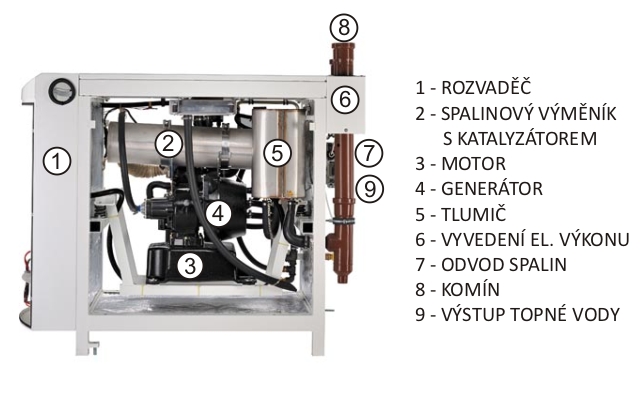

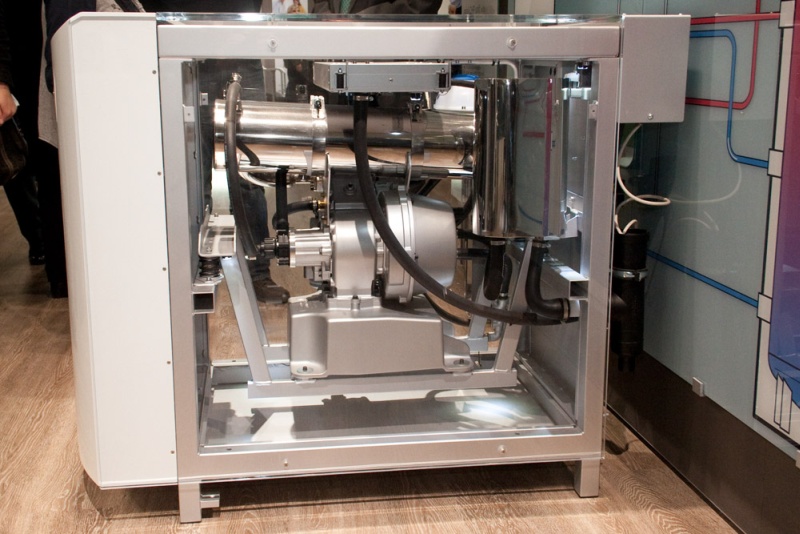

The heart of the cogeneration unit is the internal combustion piston engine which is commonly found in cars, cutting machines, motorcycles or boats. The engine is specially modified and adapted to the natural gas and while it is running, it drives a generator which produces the electricity. Under normal circumstances the exhaust gases of high temperature would exit to the atmosphere as for example from cars. However, a special heat exchanger is a component of the cogeneration unit which removes the heat from flue gases and forwards it to the heating water. Flue gases leave the unit at a very low temperature and thus the potential of the natural gas is maximally utilized.

Are you interested in cogeneration?

Do not hesitate to contact us by filling in our form. Alternatively you can visit our E-SHOP. Our experienced team of specialists is more than happy to help you. We analyse your needs of electricity and heat and recommend you the best solution. Thanks to our experiences Vaillant selected to cooperate just with TERMS to install cogeneration units and follow-up servicing as well.

Quotation

Get your free quotation from one of our sales representatives. Please enter your email address and we will be in touch with you shortly.

Why is cogeneration so useful?

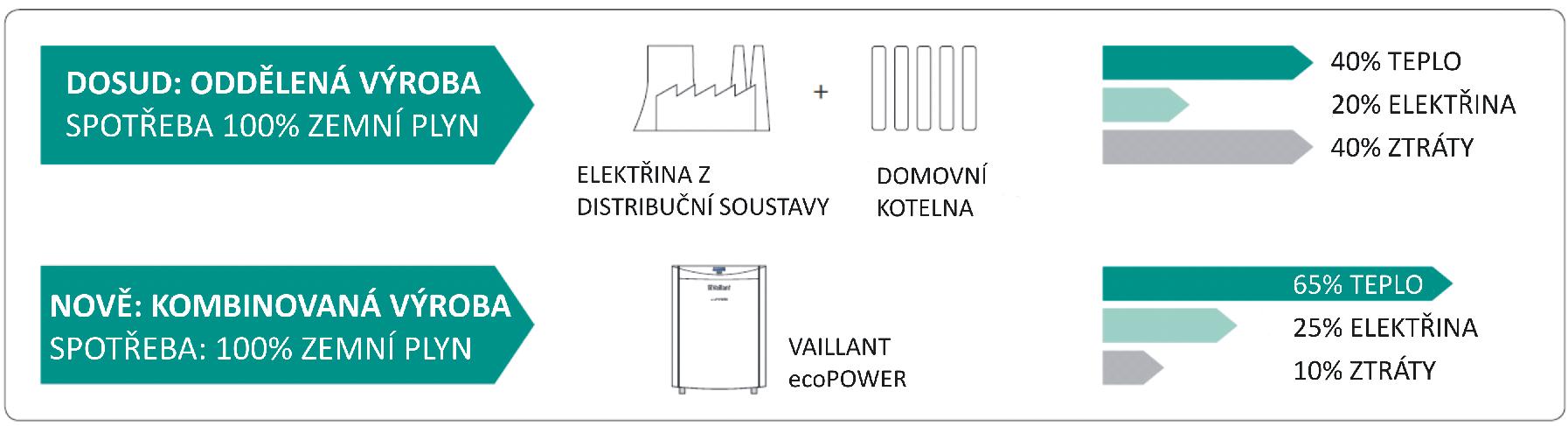

People need electricity and heat to live. In the vast majority we obtain the electricity from the grid. Thermal energy can be received from different ways, e.g. district heating from heating plants, own gas boiler or solid fuel boiler, heat pump. In most modern coal-fired plants the electricity is produced with the efficiency of 40%, the rest is a loss. For domestic gas boilers the real efficiency is between 80–90%. For cogeneration units you join the production of both into one device which operates with the efficiency of over 90%.

To fulfil your needs your domestic cogeneration consumes significantly less fuel and above all - you produce your own energy at the location where it is consumed – therefore there are no costs of electricity or heat transmission. The cogeneration unit works wherever the natural gas is available and heat consumption is assured.

Please get in touch with us. We will prepare a simple analysis of your investment programme. In most cases, the yield upon investment of a cogeneration unit is about 5–15 years.

Government subsidy of cogeneration

In the long term, cogeneration is considered to be the most meaningful transformation of energy and therefore it is also supported by the government. Why don’t want you to get government subsidy because of your own cheaper energy production?

The green bonus for electricity from micro-cogeneration is set for 2014 as 2.1CZK/kWh.

Ideal in a combination with PV

Do you have a photovoltaic plant? If yes, then you know that during summer you are virtually self-sufficient in terms of electricity. However in winter your PV does not produce enough electricity to run the house. You can only dream of the heating from PV. There is the ideal space for a cogeneration unit.

It gives you enough heat for the heating of your house and on top of that it produces electricity instead of PV. At the end you get paid by the state (i.e. green bonuses) for operating the cogeneration unit.

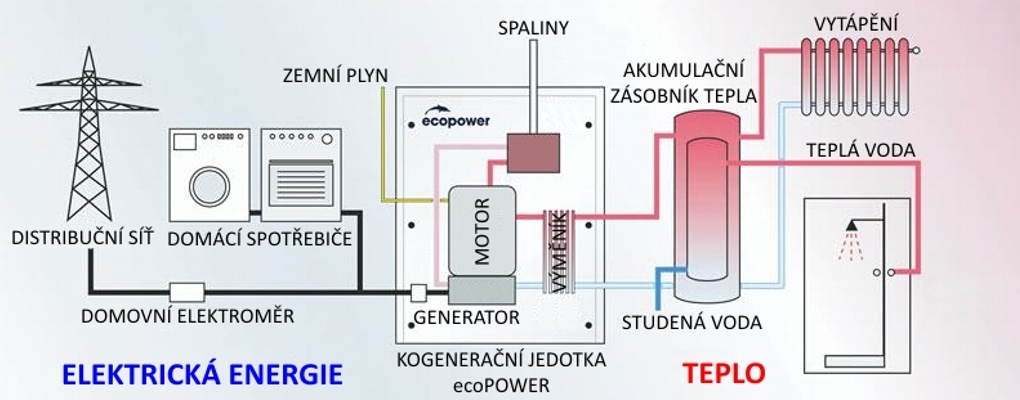

How is the cogeneration unit connected

Product range of Vaillant EcoPower

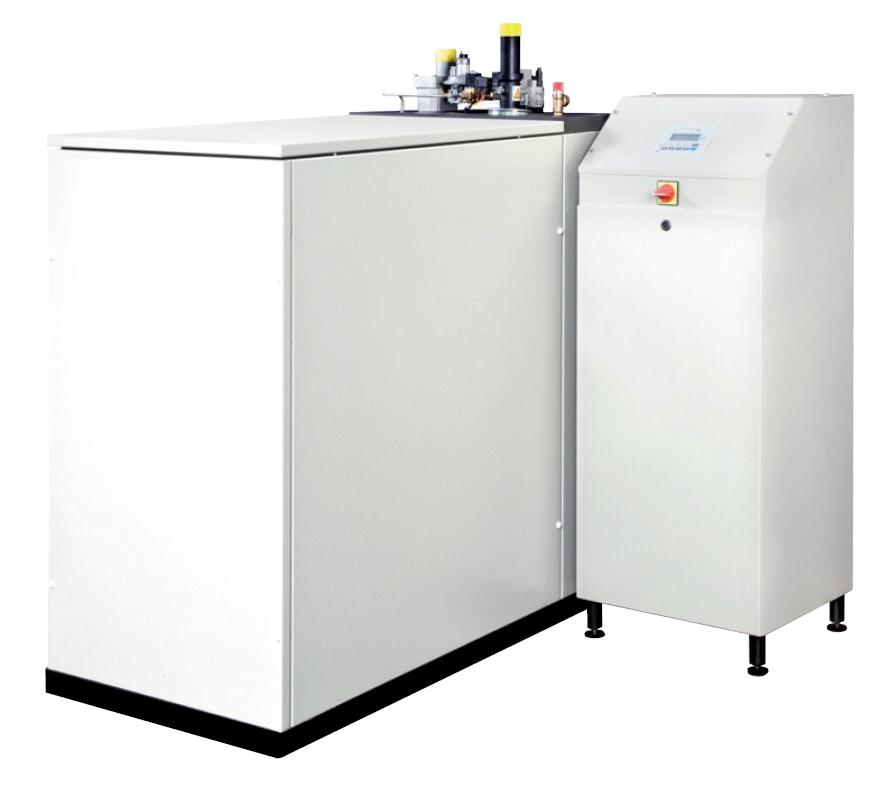

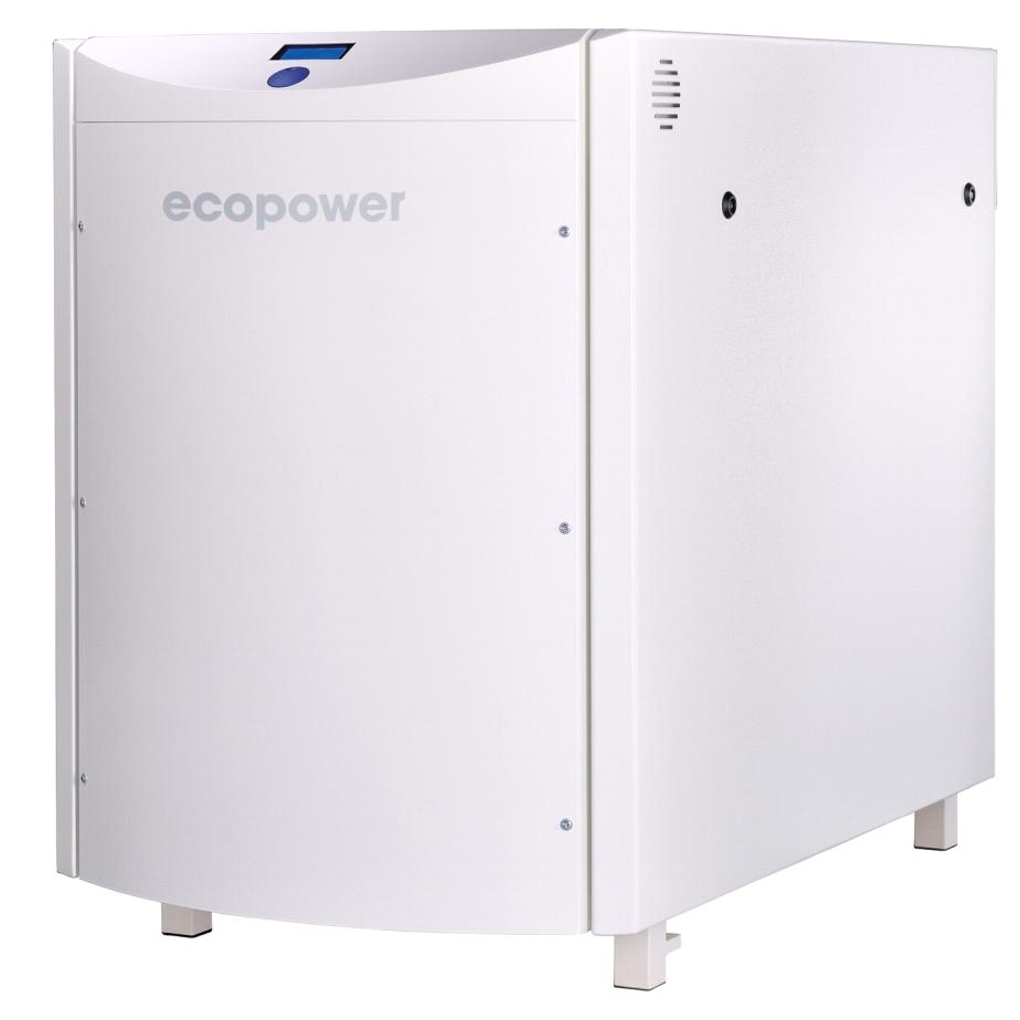

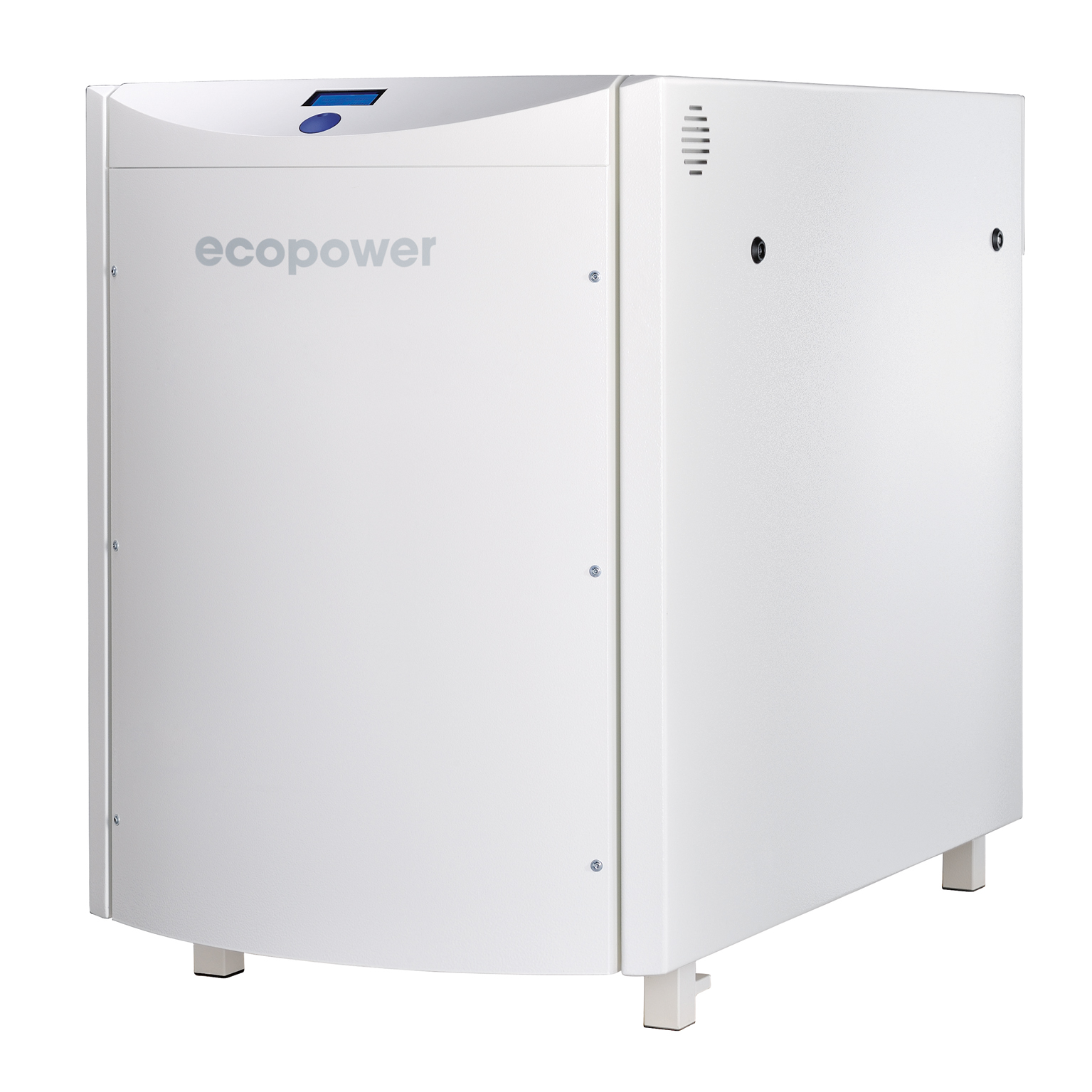

Product range of cogeneration units Vaillant EcoPower currently includes three machines.

Parametr	ecoPOWER 3.0	ecoPOWER 4.7	ecoPOWER 20.0
Svorkový elektrický výkon	1,3 – 3 kW	1,3 – 4,7 kW	7,0 – 20,0kW
Tepelný výkon	4 – 8 kW	4 – 12,5 kW	12,0 – 42,0kW
Tepelný příkon jednotky	5,9 – 12 kW	5,9 – 19 kW	71 kW
Spotřeba plynu	0,59 – 1,3 m3/hod	0,59 – 1,9 m3/hod	7,1 m3/hod
Celková účinnost KJ	90%	90%	88 – 91%
Motor	jednoválec, 4-taktní, obsah 272ccm	jednoválec, 4-taktní, obsah 272ccm	čtyřválec, 4-taktní, obsah 2 197ccm
Hlučnost (1m od jednotky)	< 50 dB	< 50 dB	60 – 62dB
Hmotnost	395 kg	395 kg	920 kg

Features overview

Electric wattage from 1.3 kW to 20 kW
Thermal wattage from 4 kW to 42 kW
High efficiency of energy production
Government subsidy of electricity production as the Green Bonus up to 2.1CZK / kWh
Very quiet operation
Energy self-sufficiency throughout the year
Reduction of energy costs
Ecological solution
Fully automatic operation
Very short yield upon investment within 3–10 years

Who is suitable for this product?

Family houses with a greater energy intensity
Residential buildings, estate housing exchanger stations
Hotels, guest houses, hostels
Hospitals, clinics, nursing homes
Indoor swimming pools, water parks, fitness centers
Department stores, supermarkets, public buildings, schools, administrative departments, office buildings
Industrial companies, breweries, agricultural buildings, zoos

Why choose us?

Stability, tradition and background

TERMS Corp. was established in 1992 as a purely technological company which builds up on a high quality, knowledge, a long-term development and a stability.

Careful selection of suppliers and components

We choose only those suppliers and brands which have long-term history, a high stability and can survive in a turbulent market.

Warranty up to 20 years

The standard warranties of key components are for 10 years. However it is possible to extend them for a whole period of a planned yield upon investment up to 20 years.

Reliable business partner for the future

We offer to our clients not only a standard periodical service but also possibilities of optimization and the adjustment of existing installations to reach maximum returns.

It does not finish at the electricity production

As we have knowledge of different lines of business, such as automation, telecommunication, measurement and regulation, we offer a complex solution.

The optimization and progressive integration and regulation of all energetic systems in your house can also be a part of our services.

We monitor the market and invest in innovation

With the continuous development of products and services our company provides you the background and stability which is essential for a long-term investment in renewable resources.

Would you like to get more information?

We will be more than happy to help you.
