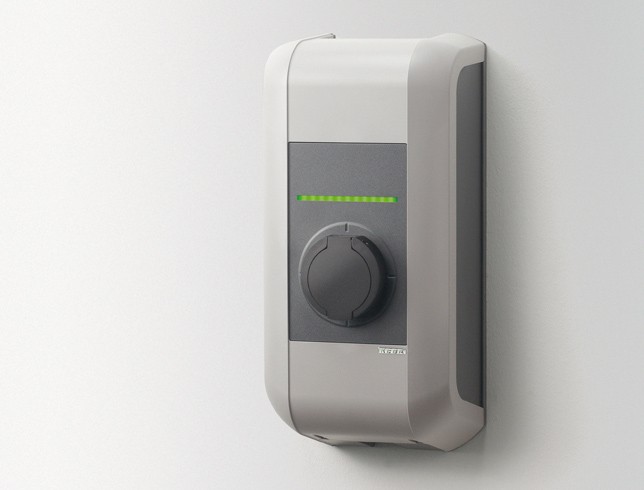

Domestic electric vehicles charging station

The KEBA Komfort charging station is a flexible solution if you need quickly and conveniently charge your electric vehicle. The charging station works up to 10 times faster than your regular 230V power outlet.

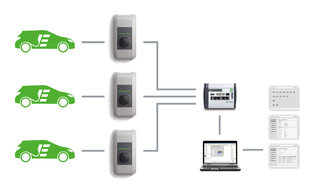

It is available with a communication module (PLC). Thanks to PLC function you are able to track the charging and batteries status via the internet.

Are you interested in a domestic charging station?

Do not hesitate to contact us by filling in our form. Alternatively you can visit our E-SHOP. If you require further information about KEBA domestic charging station, please read below.

Quotation

Get your free quotation from one of our sales representatives. Please enter your email address and we will be in touch with you shortly.

Domestic charging station is suitable for following types of vehicles:

BMW i3, BMW i8, Citroën C-Zero, Fisker Karma, Ford Focus Electric, Mitsubishi i-MiEV, Mitsubishi Outlander (Type 1), Nissan Leaf (3.7 kW), Nissan Leaf (7.4 kW), Nissan e-NV200, Peugeot iOn, Renault Fluence Z.E., Renault Kangoo Z.E. (Type 1), Renault Kangoo Z.E. (Type 2), Renault ZOE, Smart fortwo electric drive (3.3 kW), Smart fortwo electric drive (22 kW), Tesla Model S (11 kW Single Charger), Tesla Model S (22 kW Twin Charger), Volkswagen e-up!, Volkswagen e-Golf, Volvo V60 Plug-In Hybrid

Technical specifications:

Colour: Anthracite gray / gray
Dimensions (H x W x D): 240 × 163 × 495 mm
Weight: 4.8 kg (depending on model)
Configurable connection values of current: 10A, 13A, 16A, 20A, 25A or 30 / 32A
Voltage: 3×230 / 400V
Charging mode: according to IEC 61851 Mode 3

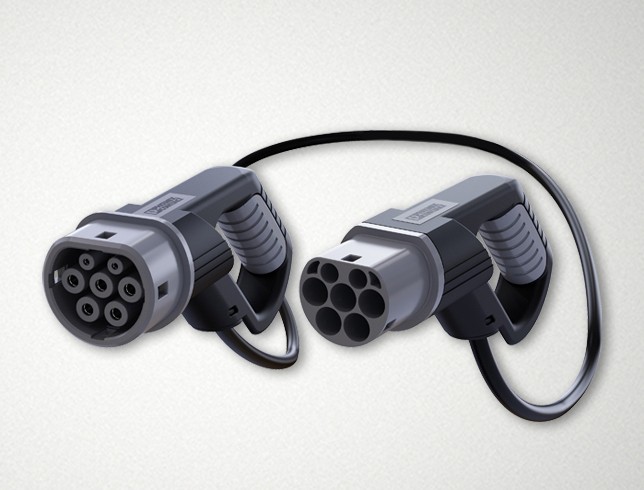

Charging connector / charging socket: EN62196–1 VDE-AR-E 2623–2–2 / Type 2
Class of protection: IP54 splashproof, suitable for outdoor installation
Operating and storage temperature and max. humidity: 16 A: from –25°C to + 50°C, 32 A: from –25°C to +40°C, 95%

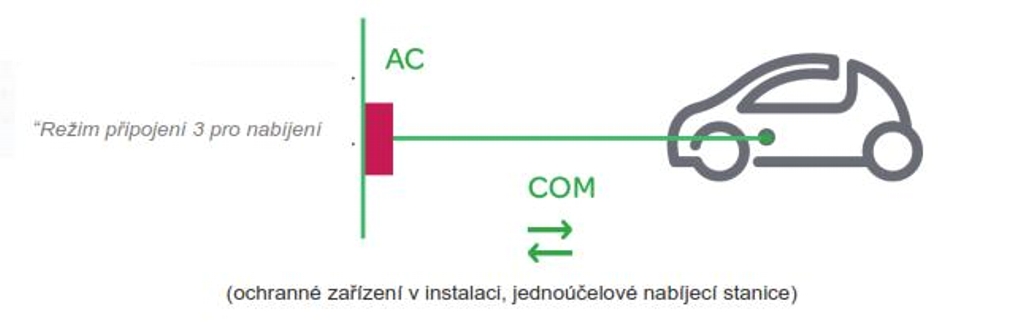

Charging mode: Mode 3

The electric vehicle is directly connected to the grid through a special socket and plug and a dedicated circuit. Control and protection functions are permanently incorporated into the appliance. It is a connection mode for charging which meets all applicable standards for electrical installations. Umožňuje load-shedding elektrické spotřebiče v domácnosti mohou být provozovány při nabíjení vozidla nebo naopak optimalizuje dobu nabjení elektroautomobilu. It enables load-shedding; i.e. electric household appliances can be operated while charging the e-vehicle or conversely it optimizes the e-vehicle charging.

Features overview

Superior safety criteria
Charging up to 10 times faster with 22kW than any standard socket
Operating displays with color LEDs
Charging cable, communication or charging permit available

Who is suitable for this product?

Owners of electric vehicles
Owners of petrol stations
Owners of shopping centres and public spaces

Why choose us?

Stability, tradition and background

TERMS Corp. was established in 1992 as a purely technological company which builds up on a high quality, knowledge, a long-term development and a stability.

Careful selection of suppliers and components

We choose only those suppliers and brands which have long-term history, a high stability and can survive in a turbulent market.

Warranty up to 20 years

The standard warranties of key components are for 10 years. However it is possible to extend them for a whole period of a planned yield upon investment up to 20 years.

Reliable business partner for the future

We offer to our clients not only a standard periodical service but also possibilities of optimization and the adjustment of existing installations to reach maximum returns.

It does not finish at the electricity production

As we have knowledge of different lines of business, such as automation, telecommunication, measurement and regulation, we offer a complex solution.

The optimization and progressive integration and regulation of all energetic systems in your house can also be a part of our services.

We monitor the market and invest in innovation

With the continuous development of products and services our company provides you the background and stability which is essential for a long-term investment in renewable resources.

Would you like to get more information?

We will be more than happy to help you.
